BS 8081:2015 remains the definitive code for ground anchorages in the UK, and in Northampton its application is inseparable from the local geology. The town straddles a transition from the Lower Lias clays in the western suburbs to the iron-rich Northampton Sand Formation that caps the hills around Kingsthorpe and Abington. These two materials demand fundamentally different anchor design approaches: a stiff overconsolidated clay that creeps under sustained load, and a variable sandstone with ironstone bands that can flake and lose bond if the grouting pressure is not carefully controlled. Our team has designed anchors for basement excavations near the Cultural Quarter and for slope retention along the Nene Valley, where temporary works must account for groundwater perched within the Northampton Sand. The design process always starts with a desk study of the BGS superficial and bedrock mapping, followed by a site-specific investigation to confirm the depth to competent bearing stratum and the presence of any solution features in the limestone below the clay cap.
Anchor bond in the Northampton Sand can exceed 400 kPa in intact ironstone, but drops sharply if water is allowed to pond in the borehole during drilling.
Process overview
Local context
What we observe across Northampton is that anchor performance problems rarely stem from the steel tendon itself; they originate in the grout-to-ground interface, particularly where the borehole passes through a mixed face of clay and weathered sandstone. A rotary percussive drilling method that works cleanly in the Northampton Sand can smear the clay interface, halving the effective bond unless the hole is thoroughly flushed. In the Lias, long-term creep under lock-off load can relax prestress by 10 to 15 percent over the first six months, a figure we accommodate by specifying a higher initial lock-off load and by scheduling lift-off checks. Groundwater chemistry also matters: the Lias contains pyrite that can oxidise to sulphate, and in isolated spots near old gasworks or landfill the pH can drop low enough to threaten the tendon grout. British Standard 5930 and BS 8081 both require a chemical aggressivity assessment for permanent anchors, and we commission leachate testing whenever the desk study flags a potential contaminant source within 250 metres of the site.
Reference standards
BS 8081:2015 – Code of practice for grouted anchors, BS EN 1997-1:2004 – Eurocode 7: Geotechnical design, BS 5930:2015 – Code of practice for ground investigations, BS EN 1537:2013 – Execution of special geotechnical works – Ground anchors
Additional services

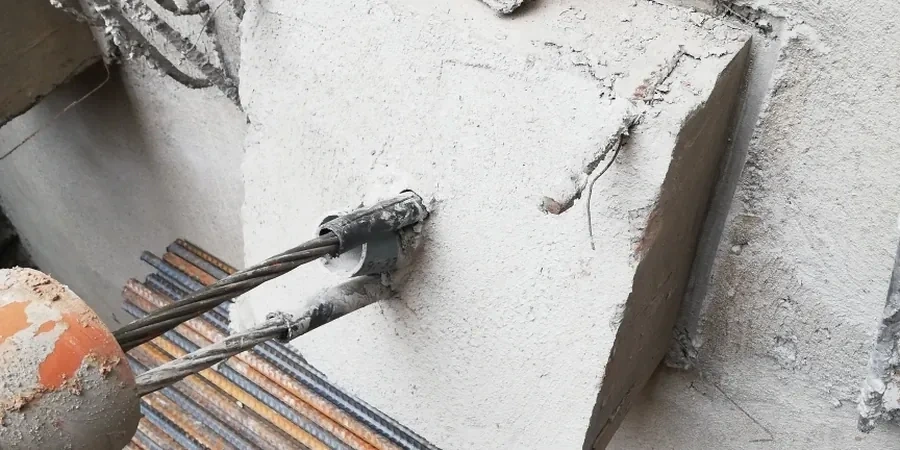

Active (Prestressed) Anchor Design
Suitable for retaining walls, bridge abutments, and basement slabs where movement must be limited from the first day. We size the tendon free length, bond length, and lock-off load based on the ground profile logged from site investigation. Each design includes a staged stressing sequence and a programme of suitability and acceptance testing compliant with BS 8081, so the contractor has a clear sequence from drilling through to final lock-off.
Passive Anchor and Soil Nail Design
Used in slope stabilisation and temporary excavations where the ground is allowed to deform slightly before the anchor engages. In the Lias clay we specify self-drilling hollow bars with a sacrificial drill bit to prevent hole collapse, while in the Northampton Sand a driven bar with a grouted bulb can provide rapid installation. The design follows the DA1-C2 partial factor approach of Eurocode 7, with pull-out resistance verified through on-site nail testing.
Typical parameters
Top questions
How much does an anchor design package cost for a Northampton site?
Anchor design fees in Northampton typically range from £810 to £2,940, depending on the number of anchors, the complexity of the ground profile, and the testing regimen required. A straightforward temporary tie-back scheme with a few anchors sits at the lower end, while a permanent anchored wall with investigation tests, suitability tests, and a full monitoring plan moves toward the upper figure. We provide a fixed-price proposal after reviewing the site investigation data.
What is the difference between an investigation test and a suitability test for anchors?
An investigation test is loaded to failure or near-failure of the grout-ground bond, usually on a sacrificial anchor installed solely for testing, to confirm the ultimate bond stress used in design. A suitability test is conducted on a production anchor, loaded to 1.5 times the working load, to prove the anchor can carry the design load without excessive creep. BS 8081 prescribes the number of each test based on the project risk category and the total anchor count.
Can you install permanent anchors in the Lias clay beneath Northampton?
Yes, permanent anchors are feasible in the Lias provided they are designed with double corrosion protection and the fixed anchor length is placed well into the intact, unweathered clay. Long-term creep is controlled by limiting the bond stress to a value derived from residual shear strength parameters, and we specify confirmatory lift-off checks at 7, 28, and 180 days after lock-off to verify prestress retention.
What borehole diameter do you recommend for anchors in Northampton Sand?
For strand anchors in the Northampton Sand a 100–125 mm diameter is typical, drilled with an eccentric overburden system if the sand is weakly cemented and prone to collapse. In the harder ironstone bands a down-the-hole hammer can achieve a clean bore, but we often reduce the diameter to 90 mm to limit disturbance and maintain grout confinement. The final diameter depends on the tendon configuration, the required grout cover, and the installation method selected by the specialist contractor. More info.
