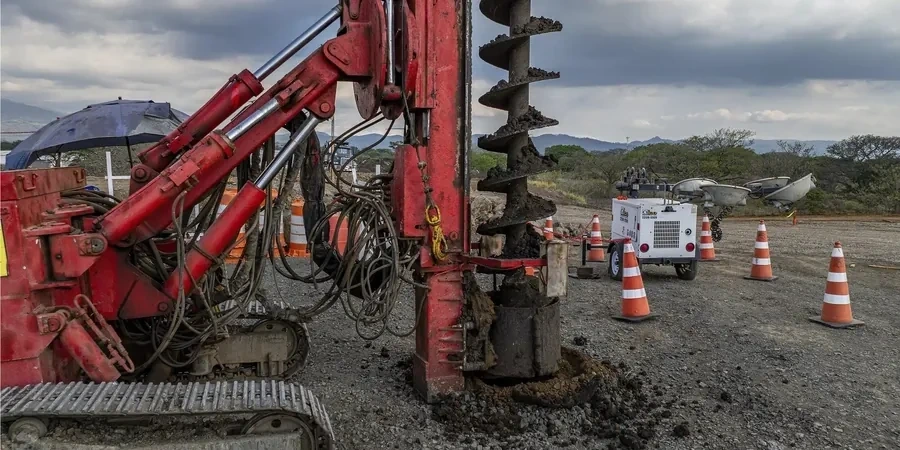

BS EN 1997-1:2004 (Eurocode 7) requires a ground investigation report that justifies the chosen foundation solution. In Northampton, much of the town sits on glacial till overlying Lias Clay, but the Nene Valley and tributary floodplains contain soft alluvial silts and peats that make standard footings unviable. Stone column design becomes the logical path when you need to transfer structural loads through compressible layers to firmer strata below. CPT testing provides the continuous soil profile needed to calibrate settlement predictions for vibro-replacement columns, while grain size analysis confirms the host soil is suitable for the drainage function that stone columns provide.
A 600 mm stone column at 1.8 m spacing can cut settlement by half in Northampton's Nene Valley alluvium.
Process overview
Local context
Ground conditions change noticeably across Northampton. Sites south of the river in Far Cotton often encounter 3–4 m of soft alluvium over Lias Clay, fairly predictable. But move north into Kingsthorpe or toward Dallington, and you can hit glacial till with cobbles and boulders that complicate vibroflot penetration. The biggest risk in stone column design is assuming uniform soil layers when the reality is lenses and lateral variability. We've seen projects where unanticipated peat pockets, less than 1 m thick, caused differential settlement that simple analytical methods missed. The design must account for this. We specify site trials with at least three columns installed at different grid positions, then verify with CPT before and after. Without that, you are guessing. And guessing with soft ground in Northampton's floodplain will cost you.
Reference standards
BS EN 1997-1:2004 (Eurocode 7: Geotechnical design), BS 5930:2015 (Code of practice for ground investigations), BS EN 14731:2005 (Execution of special geotechnical works – Ground treatment by deep vibration)
Additional services
Stone column design package
Full design to BS EN 1997-1 including bearing capacity and settlement analysis, column grid layout, specification for installation, and post-treatment verification plan. We work directly with your structural engineer to align column positions with column loads.
Pre- and post-installation CPT verification
CPT profiles at column centre and midpoint locations before and after vibro-replacement. We quantify the actual improvement ratio and confirm that design assumptions hold across the treated footprint.
Typical parameters
Top questions
What ground conditions in Northampton make stone columns necessary?
Soft alluvial silts and clays along the Nene floodplain, particularly south of the town centre and near Upton, often have undrained shear strengths below 30 kPa. Standard strip footings would require excessive excavation and concrete. Stone columns improve the composite ground stiffness and provide a drained load path, making shallow foundations viable without deep piling.
How much does stone column design cost for a typical Northampton project?
For a residential or light commercial project with 15–40 columns, design fees typically range from £1.190 to £4.640 depending on the extent of ground investigation already available and the number of verification tests required. This covers the design report, column layout drawings, and specification.
How do you verify that the stone columns are performing as designed?
We specify CPT soundings at column centres and at midpoints between columns, both before and after installation. The cone resistance increase quantifies the improvement ratio. For critical structures we add zone load tests or plate load tests on a single column to measure load-settlement behaviour directly.
What is the typical design life of a stone column foundation?
Stone columns are designed for a 50-year service life under BS EN 1990, assuming no degradation of the stone fill. The key factor is ensuring the columns extend through any organic or compressible layers to competent bearing strata. Settlement is largely complete within months because the columns act as vertical drains accelerating primary consolidation.
