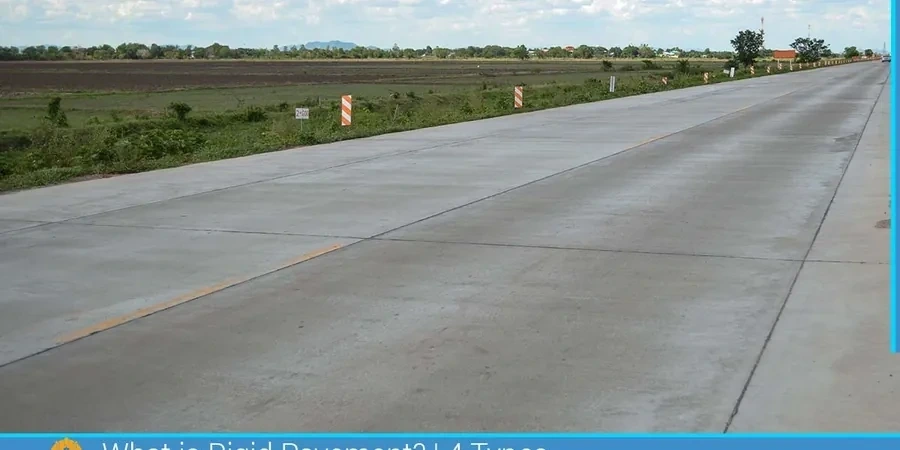

Northampton sits squarely on the Lias Clay formation, and if you've worked anywhere from Duston to Kingsthorpe, you'll know that shrink-swell potential is the first thing that comes to mind when designing a rigid pavement. Unlike flexible pavements that can tolerate a bit of differential movement, a concrete slab demands a foundation that won't heave after a wet winter or shrink during a dry spell. That's where our geotechnical input gets practical: we core through the made ground that blankets much of the Nene Valley, sample the underlying clay, and deliver the stiffness parameters your pavement engineer actually needs. The county's average annual rainfall of roughly 650 mm keeps moisture levels fluctuating near the surface, so we always pair the CBR profile with plasticity index testing to flag any reactive zones before the concrete goes down. When the subgrade is marginal, we often recommend a capping layer design checked with CBR testing to stabilise the formation before the pavement layers are built up.
A rigid pavement only performs as well as the subgrade it rests on—get the formation stiffness right and the slab takes care of the rest.
Process overview
Local context
One thing we've learned from pavement investigations around Northampton is that the biggest risk isn't the clay itself—it's the variability over short distances. A site near the Riverside retail park might show competent Lias Clay at 600 mm depth in one corner and three metres of soft alluvium in another, and if you design the slab assuming uniform conditions, you'll get reflective cracking within the first two years. The other silent problem is sulphate attack. Some of the Lias Clay horizons here contain enough pyrite oxidation products to degrade conventional Portland cement concrete, and we've seen cases where the ground was classed as DS-3 aggressive under BRE Special Digest 1. That's not something you want to discover after the pavement is laid. We also watch for perched water in the Northampton Sand, which can soften the formation under trafficking before the concrete has fully cured.
Reference standards
BS 5930:2015+A1:2020 (Code of practice for ground investigations), Eurocode 7 (BS EN 1997-1:2004 + UK National Annex), MCHW Series 600 (Specification for Highway Works – Earthworks), BRE Special Digest 1 (Concrete in aggressive ground), IAT Design Guide for Concrete Industrial Ground Floors (TR34)
Additional services
Pavement Foundation Investigation
Trial pitting, dynamic cone penetration, and in-situ CBR testing across the Northampton area to establish formation strength, frost susceptibility, and sulphate class for concrete pavement design to UK highway standards.
Concrete Pavement Performance Review
Forensic investigation of failed rigid pavements in Northampton, including coring, deflection testing, and subgrade re-assessment to diagnose joint spalling, cracking, or pumping and propose remedial measures.
Typical parameters
Top questions
What subgrade strength is needed for a rigid pavement in Northampton?
For most industrial and highway rigid pavements, we target a formation CBR of at least 5% immediately beneath the sub-base, with a modulus of subgrade reaction (k-value) typically above 27 MPa/m for moderate traffic. In Northampton's Lias Clay areas, achieving this often requires a capping layer of 300 mm to 600 mm thickness, depending on the plasticity index and moisture condition at the time of construction.
How much does a rigid pavement geotechnical investigation cost in Northampton?
For a typical industrial or commercial rigid pavement project in Northampton, the geotechnical investigation budget tends to fall between £1,690 and £5,170, depending on the number of exploratory points, laboratory testing requirements, and the need for chemical analysis for sulphate attack. We provide a fixed-price proposal once we've reviewed the site layout and traffic loading requirements.
Which British Standards apply to rigid pavement design in the UK?
The key documents are BS 5930 for ground investigation practice, the MCHW Series 600 for earthworks specification, and BRE Special Digest 1 for concrete in aggressive ground. For concrete industrial floors, the TR34 guidance from the Concrete Society is the industry reference. We also apply the relevant parts of Eurocode 7 for the geotechnical design aspects of the pavement foundation.
