The single most expensive mistake a contractor makes in Northampton is assuming the subgrade is uniform. It rarely is. A warehouse access road laid over Lias clay swells in winter then cracks by March; a spine road through sand lenses near the Nene pumps fines into the granular sub-base after two wet seasons. The pavement then delaminates from the bottom up, and patching never fixes it. We see this pattern repeatedly on schemes from Brackmills to Swan Valley, so our CBR assessment always begins with a borings grid that captures the vertical and lateral variability that the British Geological Survey 1:50,000 sheet flags but cannot quantify at formation level. Combined with in-situ permeability tests where groundwater fluctuation is suspected, we build a drainage-responsive design section that works for the life of the asset, not just the defects liability period.
A flexible pavement fails from the bottom up; if the CBR is wrong at formation level, the asphalt surface will never compensate.
Process overview
Local context
The Lias clay that underlies much of Northampton’s eastern and southern expansion areas has a volumetric shrinkage potential that surprises designers unfamiliar with the Jurassic formations. When a flexible pavement is constructed during a dry August at optimum moisture content, the subgrade will subsequently suck water from the verges, heave, and create longitudinal cracking that tracks straight into the binder course. If the drainage blanket is omitted because a cost planner assumed the ironstone subgrade drains freely, trapped pore pressure in the capping layer leads to pumping at transverse joints. On the Northampton Gateway Rail Freight Terminal logistics plots, we calculated that a 50 mm increase in sub-base thickness and a geotextile separator added less than 2% to the earthworks line item but eliminated an estimated 15-year maintenance liability. Those are the numbers that matter.
Visual overview

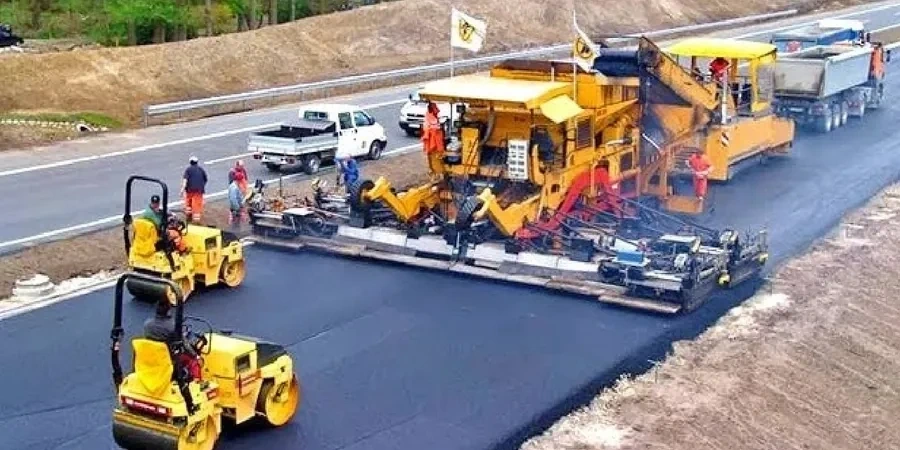

Reference standards
Design Manual for Roads and Bridges CD 226 (formerly IAN 73/06), BS EN 13108-1:2016 – Bituminous mixtures – Asphalt Concrete, Manual of Contract Documents for Highway Works, Series 600 & 900, BS 1377-2:1990 – Classification tests for civil engineering purposes
Additional services
Subgrade investigation & formation CBR
Grid-based trial pitting and window sampling across the proposed footprint, with in-situ CBR and laboratory soaked CBR determination per BS 1377-4. Foundation class assessment in accordance with CD 225.
Pavement foundation design
Capping, sub-base and basecourse thickness calculations using the analytical method of CD 226. We model traffic loading in million standard axles and output a schedule of layer thicknesses, materials specifications and compaction targets.
Material specification & source approval
We test aggregate durability, sulphate content of recycled materials, and binder performance grade for local asphalt plants. A full compliance package is prepared for adoption under Section 38 agreements.
Construction-phase testing & layer sign-off
Nuclear density gauge profiling, stiffness measurement via LWD, and asphalt core extraction for air voids and binder content. Every layer is documented before the next lift is placed.
Typical parameters
Top questions
How much does a typical flexible pavement design scope cost for a Northampton industrial plot?
For a standard industrial unit access road and yard of roughly 3,000–6,000 square metres, the complete design package, including ground investigation, laboratory CBR testing and the pavement thickness report, typically falls between £1.330 and £4.390 depending on the investigation depth and the number of trial pits required.
What is the minimum CBR value acceptable for a flexible pavement in the Northampton area?
The Design Manual for Roads and Bridges requires a minimum subgrade CBR of 2.5% at formation level for a standard pavement foundation. If the soaked CBR falls below 2%, we investigate capping replacement or lime stabilisation before proceeding with the granular layers.
Can you design a flexible pavement suitable for Section 38 adoption by West Northamptonshire Council?
Yes. Our designs conform to the Manual of Contract Documents for Highway Works and DMRB standards, which are the technical basis for Section 38 adoption. We prepare the full specification, including material clauses and compaction acceptance criteria, and we attend handover inspections.
How do you account for frost-susceptible subgrades in the pavement design?
We measure the frost-susceptibility of the subgrade by particle size analysis and modify the capping thickness in accordance with CD 226 Annex A. In Northampton, where the Lias clay is moderately frost-susceptible, we typically specify a minimum 450 mm of non-frost-susceptible granular capping below the sub-base.
What asphalt materials do you specify for heavy-goods vehicle areas?
For HGV loading docks and circulation roads, we specify a dense bitumen macadam base course, an AC 20 binder course with 40/60 pen bitumen, and a 40 mm stone mastic asphalt surface course with high polished stone value aggregate. The exact mix is matched to the traffic loading in million standard axles.
